Welding Hinges
Welding Hinges overview
Weld On Hinges are typically used for applications where you need to weld on a hinge to another metal surface such as an hatch of door. Weld on hinges are available in a variety of shapes and types as well as different materials. we offer some of the most common types of weld-on hinges. Below you will find an overview off all our welding hinges. Please contact us if you require more inforamtion of quote. The hinges do not have a minimum order unit and can therefore be ordered individually. If you need several hinges, we advise you to request a quote and special graduated price

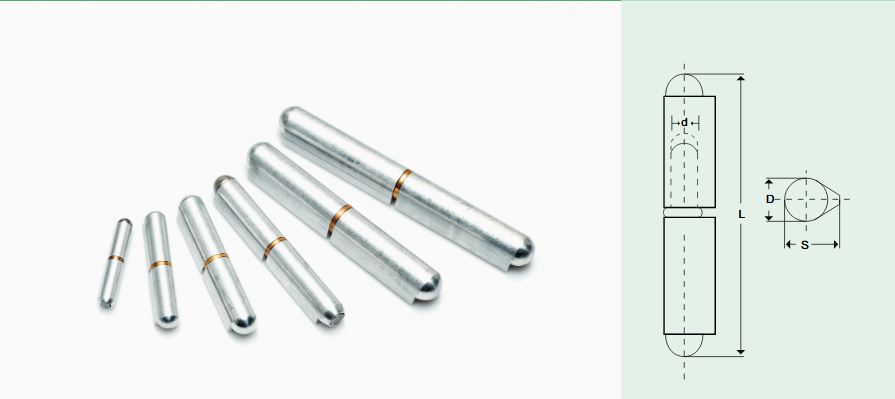

2-Part weld-on Hinge with removable pin
We offer you 2 different versions of this:
Welding hinge with removable Steel pin
- Welding hinge with removable Brass pin
The hinges do not have a minimum order unit and can therefore be ordered individually. If you need several hinges, we advise you to request a quote and special graduated price.
| Length |
Diameter |
Pen |
Weight |
Force |
Fixed Pen | Removable Pen |
|---|---|---|---|---|---|---|
| mm |
mm |
mm |
100 Stk. kg |
Stk. kg |
||
| 60 | 10/12 | 6 | 1,8 | 50 | Yes | Yes |
| 80 | 13/16 | 8 | 4,0 | 70 | Yes | Yes |
| 100 | 16/20 | 10 | 7,5 | 100 | Yes | Yes |
| 120 | 16/20 | 10 | 8,7 | 120 | Yes | Yes |
| 150 | 20/25,5 | 13 | 18,0 | 150 | Yes | Yes |
| 180 | 20/25,5 | 13 | 20,9 | 170 | Yes | Yes |
